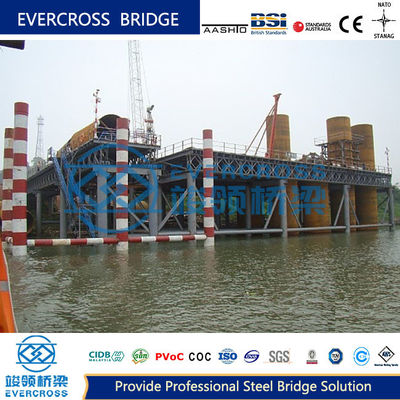

Introduction of Bailey Type Trestle Bridge And Platform

The Bailey Trestle Bridge is a temporary bridge built for engineering construction and transportation needs.

The main structure is composed of Bailey beam, support frame, beam, longitudinal beam, bridge panel, railing, abutment and pier, with large carrying capacity and flexible width design. This kind of construction bridge has low cost and rapid construction, and is widely used in road and bridge construction.

When the land and water transportation on both sides of the bridge can not meet the construction and transportation requirements in the mountain area, the construction bridge should be built. The construction bridge generally has the characteristics of simple structure and low cost, but it should be safe and firm to meet the requirements of engineering construction and transportation.

The construction technology principle of the bailey platform is to assemble the frame which is composed of connectors and steel pipes , and fix it in a suitable position to form a stable support system.

During the construction process, the appropriate height and position of the support are determined according to the actual situation, and corresponding measures are taken to support and fix.

Features of Bailey Type Trestle Bridge And Platform

Modular Construction:

The Bailey trestle bridge is composed of standardized, prefabricated steel panels and components that can be easily assembled on-site.

These modular elements include chords, web members, transoms, and bracing, which can be quickly connected to form the bridge structure.

Rapid Assembly:

The modular design of the Bailey trestle bridge allows for quick and efficient installation, often within a matter of days or even hours.

The bridge can be assembled by a team of trained personnel, without the need for specialized equipment or heavy machinery.
