Bailey Bridge Pier For Large Span Prefabricated Steel Bridge

Name: Bailey Bridge Pier For Large Span Prefabricated Steel Bridge
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	Evercross
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Bailey Bridge Pier

Loading Standard:

Hl93/Ha+20hb/T44/Class A/B/MLC110/dB24

Steel Grade:

S355/ S460/Gr 55c/Gr350/Gr50/Gr65/GB355/460

Stress Characteristics:

Truss Bridge

Application:

Over Water Bridge, Tractor Bridge, Pontoon, Footbridge, Public Iron Dual Purpose Bridge, Highway Bridge

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Packaging Details:

According to detailed order

Highlight:

Large Span Bailey Bridge Pier

Prefabricated Bailey Bridge Pier

Steel Bailey Bridge Pier

Product Description

Bailey Bridge Pier For Large Span Prefabricated Steel Bridge

Product Specifications

Attribute	Value
Product Name	Bailey Bridge Pier
Loading Standard	Hl93/Ha+20hb/T44/Class a/B/MLC110/dB24
Steel Grade	S355/ S460/Gr 55c/Gr350/Gr50/Gr65/GB355/460
Stress Characteristics	Truss Bridge
Application	Over Water Bridge, Tractor Bridge, Pontoon, Footbridge, Public Iron Dual Purpose Bridge, Highway Bridge
Standard	AISI, ASTM, BS, DIN, GB, JIS

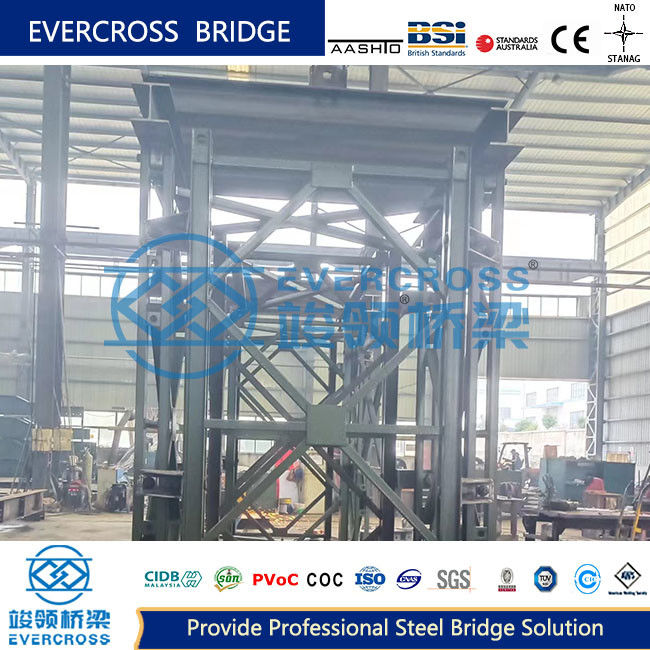

Bailey Bridge Pier Overview

Bailey bridge piers serve as the critical support structures that hold up the bridge deck and efficiently transfer the weight of the bridge and all crossing loads down to the ground or riverbed below.

The HD321 Bailey pier consists of three main components:

Foundation: Base plate and anchor bolts
Pier Body: 1m truss, angle brace, HD321 Bailey panel standard truss, vertical cross braces, and horizontal wind structure
Top Support: Beam staggered connection with space bar structure between piers

This innovative structural design meets rigorous scale requirements while maximizing material strength and structural stability.

Key Features and Benefits

Adjustable Height: Variable trestle leg configurations accommodate different gap depths for versatile obstacle spanning
Enhanced Lateral Stability: Diagonal sway bracing provides exceptional side-to-side support
Modular Design: Quick assembly and disassembly for rapid deployment in challenging environments
Material Efficiency: Optimized structure maximizes strength-to-weight ratio

The Bailey bridge pier's adaptability and proven performance make it ideal for temporary crossings in military, emergency, and construction applications where speed and reliability are paramount.
