Truss Bridge Bailey Bridge Pier Economic And Fast Installed

Name: Truss Bridge Bailey Bridge Pier Economic And Fast Installed
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	Evercross
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Bailey Bridge Pier

Loading Standard:

Hl93/Ha+20hb/T44/Class A/B/MLC110/dB24

Steel Grade:

S355/ S460/Gr 55c/Gr350/Gr50/Gr65/GB355/460

Stress Characteristics:

Truss Bridge

Application:

Over Water Bridge, Tractor Bridge, Pontoon, Footbridge, Public Iron Dual Purpose Bridge, Highway Bridge

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Packaging Details:

According to detailed order

Highlight:

Fast Installed Bailey Bridge Pier

Economic Bailey Bridge Pier

Truss Bailey Bridge Pier

Product Description

Truss Bridge Bailey Bridge Pier Economic And Fast Installed

Product Specifications

Attribute	Value
Product Name	Bailey Bridge Pier
Loading Standard	Hl93/Ha+20hb/T44/Class a/B/MLC110/dB24
Steel Grade	S355/ S460/Gr 55c/Gr350/Gr50/Gr65/GB355/460
Stress Characteristics	Truss Bridge
Application	Over Water Bridge, Tractor Bridge, Pontoon, Footbridge, Public Iron Dual Purpose Bridge, Highway Bridge
Standard	AISI, ASTM, BS, DIN, GB, JIS

Product Description

Bailey bridge piers serve as the support structures that hold up the bridge deck and transfer the weight of the bridge and any loads crossing it down to the ground or riverbed below.

Key Components

Trestle Legs: Vertical legs made of steel or aluminum that support the bridge weight, available in various lengths for different depths
Chesses: Wooden or steel planks forming the deck surface, laid perpendicular across transom beams
Sway Bracing: Diagonal bracing members providing lateral stability, made of steel rods or cables
Base Plates: Steel plates at the bottom of each trestle leg to distribute weight and prevent sinking
Transom Beams: Horizontal beams spanning between trestle legs to create a support frame

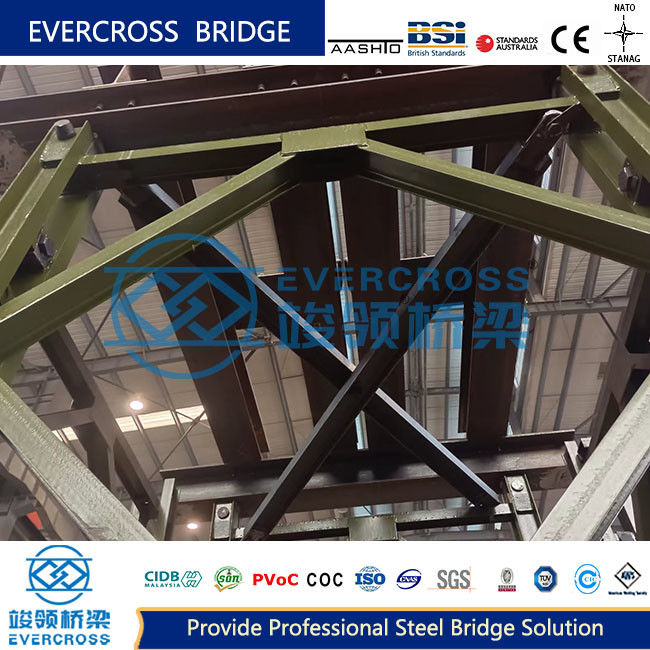

The pier of HD321 Bailey pier adopts 1m truss and HD321 Bailey panel standard truss as the foundation components to form square column pier. The top support of the pier is composed of beam staggered connection, and the space bar structure is connected between the pier.

Structural Advantages

Easy to meet scale requirements and improve structural adaptability
Optimized to fully utilize material strength while increasing stability
Lightweight materials (steel/aluminum) reduce overall weight for easier transport
Standardized components simplify maintenance and field repairs

The complete pier system consists of foundation (base plate and anchor bolts), pier body (1m truss, angle brace, HD321 Bailey panel standard truss), top support (various connecting plates and beams), and bridge span fixing device (press rod and seat).

1m truss and 321 Bailey panel standard truss can be assembled according to height requirements. With maximum unit weight of about 270kg and maximum length of 3.334m, components can be transported by ordinary road or railway vehicles, offering excellent logistics efficiency.

Tags:

temporary bailey bridge

bailey truss bridge

steel trestle bridge

Easy Assembly Steel Bailey Bridge Prefabricated Steel Bridge Construction Use
