Heavy Loading Bailey Bridge Pier For Portable Steel Bridge

Name: Heavy Loading Bailey Bridge Pier For Portable Steel Bridge
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	Evercross
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Bailey Bridge Pier

Loading Standard:

Hl93/Ha+20hb/T44/Class A/B/MLC110/dB24

Steel Grade:

S355/ S460/Gr 55c/Gr350/Gr50/Gr65/GB355/460

Stress Characteristics:

Truss Bridge

Application:

Over Water Bridge, Tractor Bridge, Pontoon, Footbridge, Public Iron Dual Purpose Bridge, Highway Bridge

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Packaging Details:

According to detailed order

Highlight:

Portable Steel Bailey Bridge Pier

Heavy Loading Bailey Bridge Pier

Steel Bailey Bridge Pier

Product Description

Heavy Loading Bailey Bridge Pier For Portable Steel Bridge

Product Specifications

Attribute	Value
Product Name	Bailey Bridge Pier
Loading Standard	HL93/HA+20HB/T44/Class A/B/MLC110/dB24
Steel Grade	S355/S460/Gr 55C/Gr350/Gr50/Gr65/GB355/460
Stress Characteristics	Truss Bridge
Application	Over Water Bridge, Tractor Bridge, Pontoon, Footbridge, Public Iron Dual Purpose Bridge, Highway Bridge
Standard	AISI, ASTM, BS, DIN, GB, JIS

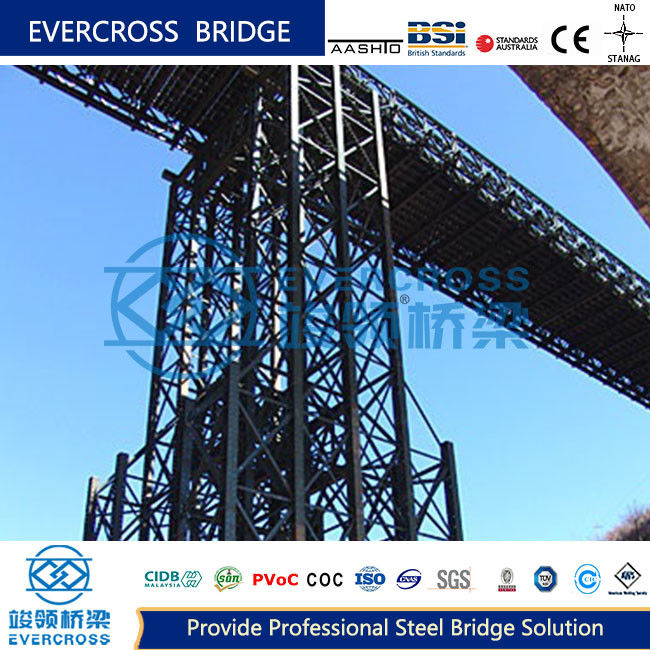

Bailey Bridge Pier Overview

Bailey bridge piers serve as critical support structures that transfer the weight of the bridge deck and all crossing loads to the ground or riverbed below.

Structural Components

Trestle Legs: Vertical steel or aluminum supports that bear the bridge's weight
Transom Beams: Horizontal beams creating the support frame between trestle legs

The pier consists of foundation, pier body, top support, and bridge span fixing device. The foundation includes base plates and anchor bolts, while the pier body combines 1m trusses, angle braces, HD321 Bailey panel standard trusses, and various cross braces for optimal structural integrity.

The top support system features connecting plates, beam structures, and tie rods, while the bridge span fixing device includes press rods and seats. This modular design allows for flexible assembly to meet specific height requirements.

Key Features

Lateral Stability: Diagonal sway bracing prevents sideways collapse under load
Efficient Load Distribution: Transom beams evenly distribute weight across multiple supports
Transport-Friendly: Maximum unit weight of 270kg allows transportation via standard vehicles
Adaptable Design: Modular components enable customized configurations for various applications

The pier's large base plates effectively spread loads to prevent excessive sinking in soft ground or riverbeds, while the lightweight yet durable construction ensures reliable performance in diverse bridge applications.
