Top Sale Large Load Bailey Bridge Pier With Long Life Painted Surface To USA

Name: Top Sale Large Load Bailey Bridge Pier With Long Life Painted Surface To USA
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	Evercross
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Bailey Bridge Pier

Loading Standard:

Hl93/Ha+20hb/T44/Class A/B/MLC110/dB24

Steel Grade:

S355/ S460/Gr 55c/Gr350/Gr50/Gr65/GB355/460

Stress Characteristics:

Truss Bridge

Application:

Over Water Bridge, Tractor Bridge, Pontoon, Footbridge, Public Iron Dual Purpose Bridge, Highway Bridge

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Packaging Details:

According to detailed order

Highlight:

Long Life Bailey Bridge Pier

Painted Surface Bailey Bridge Pier

Large Load Bailey Bridge Pier

Product Description

Top Sale Large Load Bailey Bridge Pier With Long Life Painted Surface To USA

Product Specifications

Product Name	Bailey Bridge Pier
Loading Standard	Hl93/Ha+20hb/T44/Class a/B/MLC110/dB24
Steel Grade	S355/ S460/Gr 55c/Gr350/Gr50/Gr65/GB355/460
Stress Characteristics	Truss Bridge
Application	Over Water Bridge, Tractor Bridge, Pontoon, Footbridge, Public Iron Dual Purpose Bridge, Highway Bridge
Standard	AISI, ASTM, BS, DIN, GB, JIS

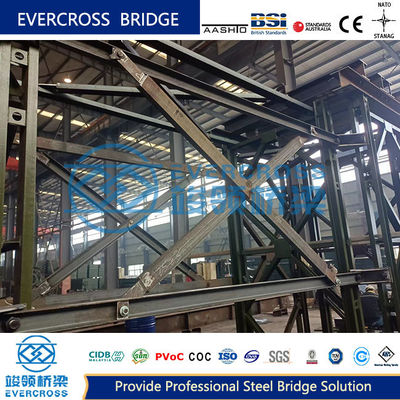

Bailey Bridge Pier Overview

Bailey bridge piers serve as the critical support structures that hold up the bridge deck and efficiently transfer the weight of the bridge and all crossing loads down to the ground or riverbed below.

Structural Components

Trestle Legs: Vertical support elements made of durable steel or aluminum that rest on the ground or riverbed
Transom Beams: Horizontal beams spanning between trestle legs to create a robust support frame

The complete pier system consists of foundation (base plate and anchor bolts), pier body (1m truss, angle brace, HD321 Bailey panel standard truss), top support (connecting plates, beam structures), and bridge span fixing device (press rod and seat).

Key Features

Adjustable Height: Modular design allows customization of leg number and length to accommodate various gap depths
Lateral Stability: Diagonal sway bracing provides exceptional lateral support for structural integrity
Lightweight Construction: Maximum unit weight of approximately 270kg for easier transportation
Efficient Transport: Components sized for standard road or railway vehicle transport (max length 3.334m)

The HD321 Bailey pier utilizes 1m truss and standard panel truss components to form square column piers. The innovative top support beam connection system enhances structural adaptability while maximizing material strength and overall stability.
