Lexible And Convenient Bailey Type Bridge Scaffolding High Strength

Brand Name:	Evercross
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Bailey Type Bridge Scaffolding

Lapping Form:

Full Scaffolding

Supporting Mode:

Projecting Scaffolding

Height:

3m-60m

Painting:

Long-Term Epoxy Zinc-Rich Kit Or Temporary Alkyd

Packaging Details:

According to detailed order

Highlight:

Convenient Bailey Type Bridge Scaffolding

High Strength Bailey Type Bridge Scaffolding

Lexible Bailey Type Bridge Scaffolding

Product Description

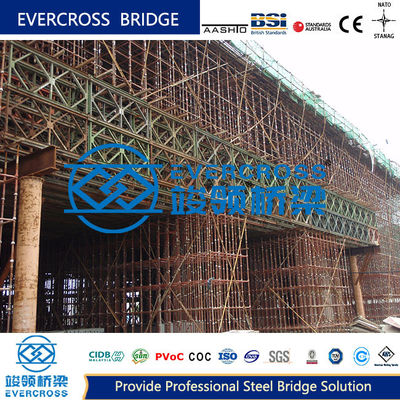

Bailey Type Bridge Scaffolding - High Strength & Convenient

Product Specifications

Attribute	Value
Product Name	Bailey Type Bridge Scaffolding
Lapping Form	Full Scaffolding
Supporting Mode	Projecting Scaffolding
Height	3m-60m
Painting	Long-Term Epoxy Zinc-Rich Kit or Temporary Alkyd

Product Overview

Bailey Type Bridge Scaffolding utilizes Bailey panels as primary bearing members, offering superior advantages compared to traditional bowl buckle scaffolds. Also known as Bailey frames, beams, or trusses, these panels feature:

Simple yet robust structural design
Easy transportation and quick erection
High load-bearing capacity
Excellent component interchangeability
Strong adaptability to various project requirements

Technical Performance Comparison

Support Type	Bowl Bucket Type	Bailey Beam Column
Stress Structure	Simple force condition	Clear force transmission (complex analysis)
Safety Performance	Stability concerns at height, foundation sensitivity	Superior impact resistance, rigid-flexible structure
Topographic Adaptability	Challenging on steep terrain	Minimal topographic influence
Construction Difficulty	Easy setup/removal, complex foundation work	Component lifting challenges, faster construction
Economic Performance	Higher material/labor costs	Lower total cost, better economy

Bailey Bar Specifications

Component	Material	Cross Section	Area (cm²)	Capacity (kN)
Chord	Q355	][10 (Channel steel)	25.48	560
Vertical Bar	Q355	I 8 (I Steel)	9.52	210
Diagonal Bar	Q355	I 8 (I Steel)	9.52	171

Configuration Types

Standard Configuration: Vertical scissor braces every 5m-8m with horizontal braces at intersections (≤8m spacing)

Reinforced Configuration: Vertical braces ≤5m spacing with horizontal braces ≤6m spacing for enhanced stability

Key Components

Steel Pipe Columns: 1000mm diameter spiral pipes with channel steel connections for stability
Adjustable Sand Box: 0.5m height adjustment between columns and I-beams
Distribution Beams: Evenly distribute structural and construction loads
Bailey Panels: Standard 3m length × 1.5m height with pin connections

Applications

Bailey panels serve multiple construction purposes including:

Highway and railway bridge construction
Gantry crane assembly
Guide beams and bridge erecting machines
Construction of hanging baskets and prefabrication yards
Municipal, building, and hydraulic engineering projects
