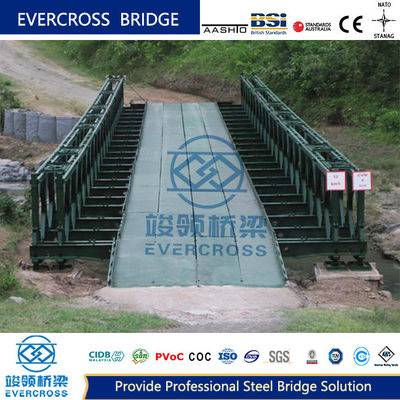

Assembly Portable Steel Bailey Bridge Fast Delivery

Bailey Bridges are portable steel bridges that have been widely used in various fields. Their most important features include the ability to achieve various spans, bear carrying capacity, light and handy components, easy dismantling, and strong adaptability. They can be quickly completed with simple tools and manpower.

The surface protection can be paint or hot-dip galvanized.

Bailey Bridge is a standard bridge equipment, adopted extensively and the most popular in the world.

• High strength and big stiffness, relative to the concrete bridge can be reduced trabecular high and self-respect
• Due to the steel isotropic, quality of a material is uniform and modulus of elasticity, that make steel bridge in the working condition and calculation compared with the assumption
• Bailey bridge generally prefabricated in factory, site assembled by pins and bolts; the construction period is short, processing convenient and not affected by seasonal effect
• Bailey bridge is suitable for industrialized manufacture and very convenient to transport

During WWII, Bailey bridge parts were made by companies with little experience of this kind of engineering. Although the parts were simple, they had to be precisely manufactured to fit correctly, so they were assembled into a test bridge at the factory to verify this. To do this efficiently, newly manufactured parts would be continuously added to the test bridge, while at the same time the far end of the test bridge was continuously dismantled and the parts dispatched to the end-users.

• Simple structure
• Convenient transport, speedy erection
• Easy disassembling
• Heavy loading capacity
• Great stability and long fatigue life
• Being capable of an alternative span, loading capacity

Beam bridge, arch bridge, rigid frame bridge, cable-stayed bridge, suspension bridge, passenger foot-bridge. Mixture form to erect all kinds of Bailey Bridges. Temporary Bridges, Emergency Bridges and Fixed Bridges.

The bridge has the advantages of few components, light weight and low cost. Using the bridge equipment, the suspension bridges of varied span can be erected.

Pre-arch method is used to additionally cut down mid-span and vertical deflection to a larger degree. Bolt-connected components use the orienting sleeve-fixing method to increase accuracy of connections. Shear is created in orienting sleeves and tension is developed in bolts, which increase the usage life of the bolts and ensure the safety of panel bridges. Wind resistant brace is made to be composite type and is connected to transom/girders to improve overall stability of panel bridges.

Bailey Bridge requires no special tools or heavy equipment for construction, the bridge elements are small enough to be carried in, and the bridge is strong enough to carry. It is considered a great example of military engineering.

Rapid deployment: One of the main advantages of the Bailey bridge is its ability to be quickly assembled and disassembled. The prefabricated components can be transported to the site and erected using simple tools and equipment, allowing for rapid deployment in emergency situations or military operations. This feature is particularly valuable in scenarios where time is critical, such as disaster relief efforts or military bridging operations.

• Heavy loading capacity
• Great stability
• Long fatigue life
• Light weight
• Low cost
• Easy and fast erection
