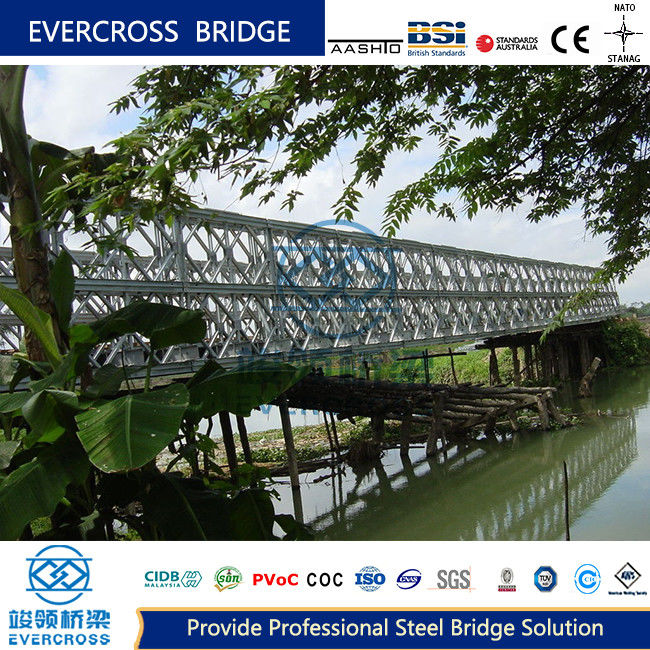

Steel Construction Compact 200 Bailey Bridge Double Deck Q355B With Single Lane

Name: Steel Construction Compact 200 Bailey Bridge Double Deck Q355B With Single Lane
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Bailey Bridge

Steel:

S355JR, S355J0, S460J0, ASTM Gr65, Gr50, Etc

Type:

CB100, CB200

Deck:

Steel Deck

Standard:

AASHTO, BS5400, AS5100, IRC, Etc

Annual Output:

100,000 Tons

Packaging Details:

According to detailed order

Highlight:

Compact 200 Bailey Bridge

Double Deck Compact Bailey Bridge

Q355B Compact Bailey Bridge

Product Description

Steel Construction Compact 200 Bailey Bridge Double Deck Q355B With Single Lane

Product Specifications

Attribute	Value
Product Name	Bailey Bridge
Steel	S355JR, S355J0, S460J0, ASTM Gr65, Gr50, etc
Type	CB100, CB200
Deck	Steel Deck
Standard	AASHTO, BS5400, AS5100, IRC, etc
Annual output	100,000 Tons

Product Overview

The Bailey Bridge is a portable, pre-fabricated truss bridge originally developed for military use during World War II. Its modular design allows for rapid assembly without heavy equipment, making it ideal for both temporary and permanent applications in civil engineering projects.

Key Specifications

Configuration	Dimensions
Single lane	Standard roadway: 3.15m / 4.2m \| Span: 30ft-200ft
Double lane	Standard roadway: 7.35m \| Span: 30ft-180ft
Load capacity	Custom designed to project requirements
Bridge type	CB100, CB200

Engineering Advantages

High strength-to-weight ratio with reduced self-weight compared to concrete alternatives
Consistent material properties ensuring predictable performance
Factory prefabrication enables rapid site assembly unaffected by weather
Modular components simplify transportation and handling
Standardized design allows for industrialized manufacturing

Structural Benefits

Simple yet robust truss structure
Easy transportation and rapid erection
High load capacity for military and civilian applications
Exceptional stability and long fatigue life
Configurable span and loading alternatives

Performance Characteristics

The Bailey Bridge's truss system distributes loads efficiently across multiple members, providing structural integrity while maintaining a relatively lightweight profile. The system's modular nature allows for various configurations to meet specific project requirements.

Applications

Temporary and emergency bridge solutions
Permanent fixed bridges
Pedestrian footbridges
Military and civilian vehicle crossings
Various bridge types including beam, arch, and suspension configurations

Technical Specifications

Category	Specifications
Bridge Types	Bailey bridge (Compact-200, Compact-100), Modular bridge, Truss Bridge, Warren bridge, Arch bridge, etc.
Design Spans	10M to 300M single span
Carriage Way	Single lane, Double lanes, Multilane, Walkway
Loading Capacity	AASHTO HL93.HS15-44 to HS25-44, BS5400 HA+20HB to HA+30HB, IRC 70R Class A/B, NATO STANAG MLC80/MLC110
Steel Grade	EN10025 S355JR/S355J0, EN10219 S460J0, ASTM A572 GR50/GR65, GB1591 GB355B/C/D/460C
Certifications	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
