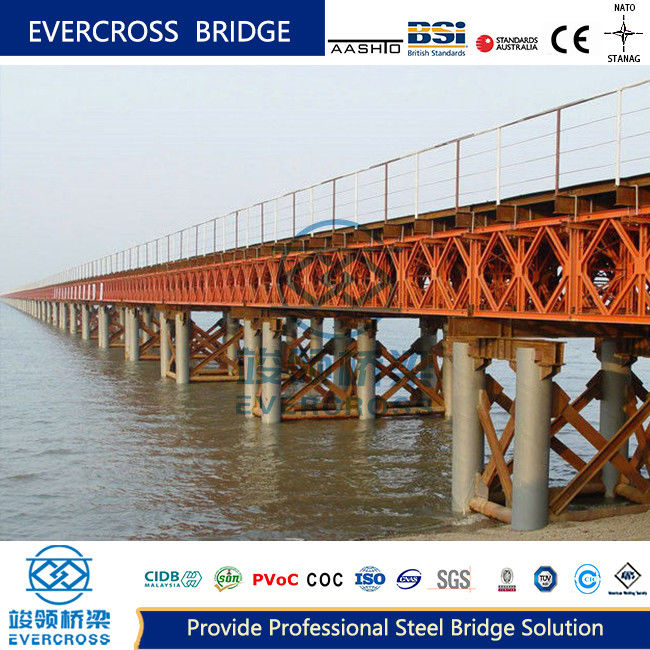

3048mm Length Bailey Bridge Reinforcement

Bailey Bridges are portable steel bridges that have been widely used in various fields. Their most important features include the ability to achieve various spans, bear carrying capacity, light and handy components, easy disassembly, and strong adaptability that allows quick completion with simple tools and manpower.

The surface protection can be paint or hot-dip galvanized.

Bailey Bridge is a standard bridge equipment, adopted extensively and the most popular in the world.

1. High strength and big stiffness, relative to the concrete bridge can be reduced trabecular high and self-respect
2. Due to the steel isotropic, quality of a material is uniform and modulus of elasticity, that make steel bridge in the working condition and calculation compared with the assumption
3. Bailey bridge generally prefabricated in factory, site assembled by pins and bolts; the construction period is short, processing convenient and not affected by seasonal effect.
4. Bailey bridge is suitable for industrialized manufacture and very convenient to transport.
5. Bailey bridge is easy to repair and replace, long lifetime, material can be recycled.

Temporary Bridges, Emergency Bridges and Fixed Bridges.

Using the bridge equipment, the suspension bridges of varied span can be erected.

The bridge has the advantages of few components, light weight and low cost.

Bailey Bridge requires no special tools or heavy equipment for construction, the bridge elements are small enough to be carried in, and the bridge is strong enough to carry. It is considered a great example of military engineering.

The compact 200 panel bridge is similar to the compact 100 panel bridge from their appearance. The difference is its increased panel height to 2.134m. It employed the method of alternating joints between Reinforcement Chords and the joints between panels. This method can decrease inelastic deformation caused by the oversized pinholes.

Pre-arch method is used to additionally cut down mid-span and vertical deflection to a larger degree.

• Heavy loading capacity
• Great stability
• Long fatigue life
• Light weight
• Low cost
• Easy and fast erection
