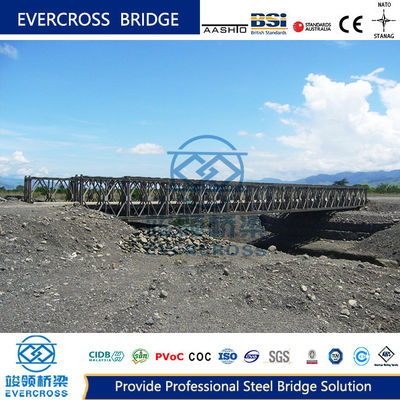

Bailey Bridges are portable steel bridges widely used in various applications. Their key features include versatile span configurations, high load-bearing capacity, lightweight components, easy assembly/disassembly, and strong adaptability. These bridges can be quickly erected using simple tools and manual labor.

Surface protection options include paint or hot-dip galvanizing.

Load capacity is designed according to specific requirements. Standard deck type is steel deck. Available bridge types include CB100 and CB200.

• Heavy loading capacity
• Exceptional stability
• Long fatigue life
• Lightweight construction
• Cost-effective solution
• Quick and easy installation

• High strength and stiffness, allowing reduced beam height and self-weight compared to concrete bridges
• Uniform material quality and modulus of elasticity ensure predictable performance
• Factory prefabrication with on-site assembly using pins and bolts minimizes construction time
• Modular design enables industrial-scale manufacturing and convenient transportation
• Easy maintenance and replacement with recyclable materials

The Compact 100 Bailey Bridge (HZCB100) is a steel truss bridge suitable for temporary or semi-permanent installations. Its modular design provides excellent component interchangeability and reusability. Widely used for:

• Construction trestle bridges
• Suspension bridges
• Construction platforms
• Formwork support for cast-in-place construction
• Large tonnage gantry cranes
• Bridge erecting machines

Available configurations include beam bridges, arch bridges, rigid frame bridges, cable-stayed bridges, suspension bridges, and pedestrian footbridges.

Bailey Bridges can be configured as:

• Temporary Bridges
• Emergency Bridges
• Fixed Bridges

The system allows erection of suspension bridges with various spans using minimal components. No special tools or heavy equipment required - all elements are lightweight enough for manual transport while maintaining exceptional strength.
