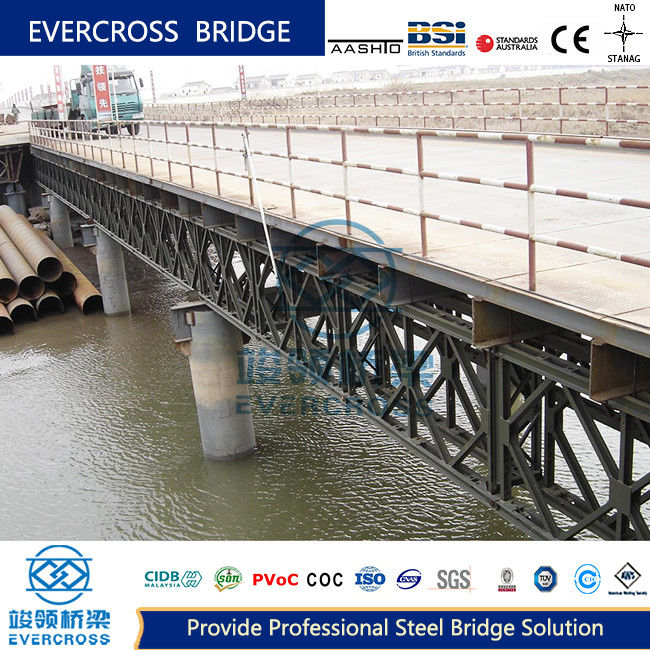

The HD200 Bailey Bridge is a portable, pre-fabricated truss bridge system featuring Double Rows Single Layer Reinforced (DSR) construction for double lane applications. Originally developed for military use during WWII, this versatile bridge solution offers rapid deployment without requiring specialized tools or heavy equipment.

Each 10-foot-long (3.0 m) section with 12-foot-wide (3.7 m) roadbed is constructed sequentially. Completed sections are pushed forward over bridgehead rollers while new sections are added behind, connected via pinned panel corners for rapid assembly.

• Simple structure with convenient transport and rapid erection
• Heavy loading capacity with exceptional stability
• Long fatigue life with material recyclability
• High strength-to-weight ratio reduces structural height
• Factory prefabrication ensures quality and fast installation
• Weather-resistant construction unaffected by seasons

Ideal for temporary crossings, emergency access, and permanent installations including beam bridges, arch bridges, rigid frame bridges, cable-stayed bridges, suspension bridges, and pedestrian footbridges.

• 2.134m panel height with reinforced chord joints
• Pre-arch method minimizes mid-span deflection
• Orienting sleeve-fixed bolt connections enhance safety
• Composite wind resistant braces improve stability
