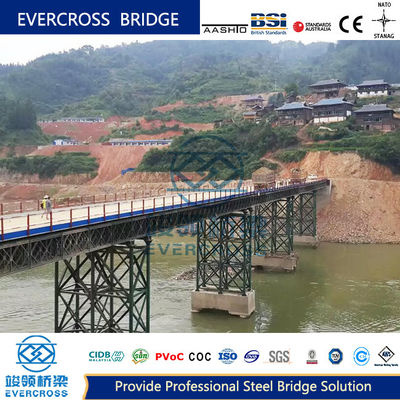

321-Type Bailey Bridge Three Rows Of Single-Layer Reinforcement

Bailey Bridges are portable steel bridges that have been widely used in various fields. Their most important features include the ability to achieve various spans, bear carrying capacity, light and handy components, easy dismantling, and strong adaptability that allows quick completion with simple tools and manpower.

The surface protection can be paint or hot-dip galvanized.

Bailey Bridge is a standard bridge equipment, adopted extensively and the most popular in the world.

• Simple structure
• Convenient transport
• Speedy erection
• Easy disassembling
• Heavy loading capacity
• Great stability
• Long fatigue life

1. High strength and big stiffness, relative to the concrete bridge can be reduced trabecular high and self-respect
2. Due to the steel isotropic, quality of a material is uniform and modulus of elasticity, that make steel bridge in the working condition and calculation compared with the assumption
3. Bailey bridge generally prefabricated in factory, site assembled by pins and bolts; the construction period is short, processing convenient and not affected by seasonal effect
4. Bailey bridge is suitable for industrialized manufacture and very convenient to transport
5. Bailey bridge is easy to repair and replace, long lifetime, material can be recycled

Emergency response and disaster relief: The Bailey bridge is often used in emergency response efforts and disaster relief operations. It can quickly provide temporary access routes for relief personnel, equipment, and supplies in areas affected by natural disasters such as earthquakes, floods, or hurricanes. The bridge's rapid deployment capability is crucial in situations where existing infrastructure has been damaged or destroyed.

Beam bridge, arch bridge, rigid frame bridge, cable-stayed bridge, suspension bridge.

The compact 200 panel bridge is similar to the compact 100 panel bridge from their appearance. The difference is its increased panel height to 2.134m. It employed the method of alternating joints between Reinforcement Chords and the joints between panels. This method can decrease inelastic deformation caused by the oversized pin holes.

Temporary Bridges, Emergency Bridges and Fixed Bridges.

Using the bridge equipment, the suspension bridges of varied span can be erected.

The bridge has the advantages of few components, light weight and low cost.

Bailey Bridge requires no special tools or heavy equipment for construction, the bridge elements are small enough to be carried in, and the bridge is strong enough to carry. It is considered a great example of military engineering.

• Heavy loading capacity
• Great stability
• Long fatigue life
• Light weight
• Low cost
• Easy and fast erection
