GW D Type Structural Steel Bridges Modular Construction Great Stability

Name: GW D Type Structural Steel Bridges Modular Construction Great Stability
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Modular Steel Bridge

Type:

GW D; D-type; Delta; 450-type; CD450; CD; 450; 470 Type

Design:

GW D Type SS, SSR, DS, C3DS, C3DSR, DD, C3DD, C3DDR, Etc. According To The Difference Of Span And Load, Select The Appropriate Row. Contact Us For Free Design.

Conventional Size Of Truss Piece:

3.048m×2.35m

Application:

Large Span, Saving The Cost Of Bridge Piers, Light Fittings, Quick Assembly, Interchangeable, Detachable, Long Life

Annual Output:

12000 Tons

Packaging Details:

According to detailed order

Highlight:

Great stability Structural Steel Bridge

GW D Type Structural Steel Bridge

Great Stability Bridges Modular Construction

Product Description

GW D Type Structural Steel Bridges - Modular Construction with Great Stability

Product Specifications

Product Name	Modular Steel Bridge
Type	GW D; D-type; Delta; 450-type; CD450; CD; 450; 470 type
Design	GW D type SS, SSR, DS, C3DS, C3DSR, DD, C3DD, C3DDR, etc. According to the difference of span and load, select the appropriate row. Contact us for free design.
Conventional size of truss piece	3.048m×2.35m
Application	Large span, saving the cost of bridge piers, light fittings, quick assembly, interchangeable, detachable, long life
Annual output	12000 Tons

Modular Steel Bridge Description

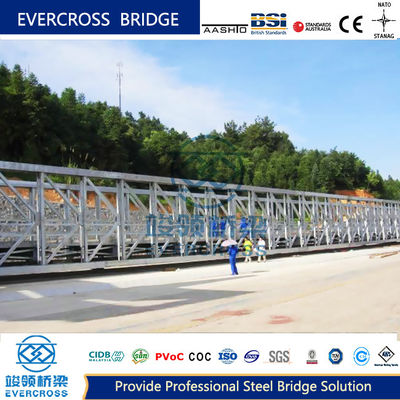

GW D Modular bridges are innovative assembly steel bridges featuring longitudinal trusses formed of steel beam chords and pre-fabricated modular steel panel webs. These are connected end-to-end with transverse cross girders supporting either a two-lane or single-lane steel deck or concrete roadway. Surface protection options include paint or hot-dip galvanizing.

Technical Specifications

Single lane	Standard roadway: 4.2m \| Single span: 35m-91m
Double lane	Standard roadway:7.35m \| Single span: 35m-91m
Load	Design according to different requirements
Deck	Steel deck / concrete deck

Key Advantages

Heavy loading capacity

Great stability

Long service life

Used as permanent bridge

Simple in structure

Rapid in erection

Product Features

High strength and stiffness, reducing beam height and weight compared to concrete bridges

Uniform material quality and modulus of elasticity for predictable performance

Factory prefabrication with site assembly via pins and bolts for quick construction

Suitable for industrialized manufacture with convenient transportation

Easy maintenance and replacement with recyclable materials

Bridge Types

Available as Temporary Bridges, Emergency Bridges, and Fixed Bridges. The system can erect various bridge types including beam bridge, arch bridge, rigid frame bridge, cable-stayed bridge, suspension bridge, and passenger foot-bridge.

Evercross Steel Bridges Overview

Product Range	Bailey bridge, Modular bridge (GWD, Delta, 450-type), Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M TO 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	Various standards including AASHTO HL93, BS5400, AS5100, IRC 70R, NATO STANAG
Steel Grade	Multiple international standards including EN10025, AS/NZS3678, ASTM A572, GB1591
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
