Customized Modular Pedestrian Bridge Galvanized For Parks Walkways

Name: Customized Modular Pedestrian Bridge Galvanized For Parks Walkways
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Modular Steel Bridge

Type:

GW D; D-type; Delta; 450-type; CD450; CD; 450; 470 Type

Design:

GW D Type SS, SSR, DS, C3DS, C3DSR, DD, C3DD, C3DDR, Etc. According To The Difference Of Span And Load, Select The Appropriate Row. Contact Us For Free Design.

Conventional Size Of Truss Piece:

3.048m×2.35m

Application:

Large Span, Saving The Cost Of Bridge Piers, Light Fittings, Quick Assembly, Interchangeable, Detachable, Long Life

Annual Output:

12000 Tons

Packaging Details:

According to detailed order

Highlight:

Customized Modular Pedestrian Bridge

Galvanized Modular Pedestrian Bridge

Customized galvanized steel bridge

Product Description

Customized Modular Pedestrian Bridge Galvanized For Parks Walkways

Product Specifications

Product Name	Modular Steel Bridge
Type	GW D; D-type; Delta; 450-type; CD450; CD; 450; 470 type
Design	GW D type SS, SSR, DS, C3DS, C3DSR, DD, C3DD, C3DDR, etc. According to the difference of span and load, select the appropriate row. Contact us for free design.
Conventional size of truss piece	3.048m×2.35m
Application	Large span, saving the cost of bridge piers, light fittings, quick assembly, interchangeable, detachable, long life
Annual output	12000 Tons

Modular Steel Bridge Description

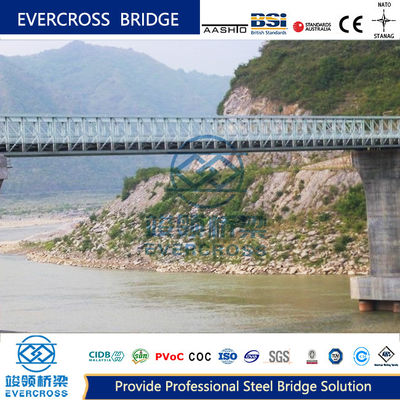

GW D Modular bridges are innovative assembly steel bridges featuring longitudinal trusses formed of steel beam chords and pre-fabricated modular steel panel webs. These are connected end-to-end with transverse cross girders supporting either a two-lane or single-lane steel deck or concrete roadway. Surface protection options include paint or hot-dip galvanizing.

Technical Specifications

Configuration	Roadway Width	Single Span Range
Single lane	Standard roadway: 4.2m	35m-91m
Double lane	Standard roadway: 7.35m	35m-91m
Load: Designed according to different requirements Deck: steel deck / concrete deck

Competitive Advantages

Heavy loading capacity

Great stability

Long service life

Used as permanent bridge

Simple in structure

Rapid in erection

Key Features

High strength and stiffness, reducing beam height and weight compared to concrete bridges

Factory prefabricated with quick site assembly via pins and bolts

Ideal for industrial manufacturing and easy transportation

Steel's isotropic properties ensure uniform quality and predictable performance

Easy maintenance and replacement with long lifespan and recyclable materials

Construction not affected by seasonal conditions

Applications

Suitable for various bridge types including beam bridges, arch bridges, rigid frame bridges, cable-stayed bridges, suspension bridges, and passenger footbridges. Can be used for temporary bridges, emergency bridges, and fixed bridges.

Evercross Steel Bridges Overview

Bridge Types	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB), Modular bridge (GWD, Delta, 450-type, etc), Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M TO 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	AASHTO HL93.HS15-44,HS20-44,HS25-44, BS5400 HA+20HB,HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110. Truck-60T,Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C, AS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65, GB1591 GB355B/C/D/460C
Certificates	ISO9001, ISO14001,ISO45001,EN1090,CIDB,COC,PVOC,SONCAP
Welding Standards	AWS D1.1/AWS D1.5, AS/NZS 1554 or equivalent
Bolts	ISO898,AS/NZS1252,BS3692 or equivalent
Galvanization Code	ISO1461, AS/NZS 4680, ASTM-A123, BS1706 or equivalent
