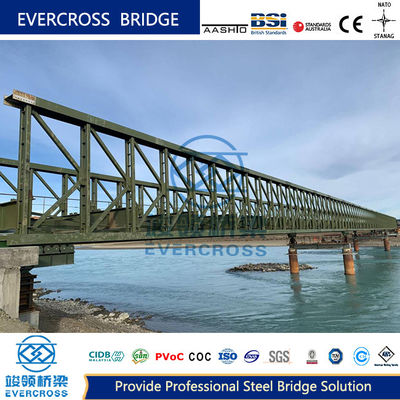

Compact 200 30.48m Single Truss Single Storey Bailey Bridge With Simple Structure

Name: Compact 200 30.48m Single Truss Single Storey Bailey Bridge With Simple Structure
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Bailey Bridge

Steel:

S355JR, S355J0, S460J0, ASTM Gr65, Gr50, Etc

Type:

CB100, CB200

Deck:

Steel Deck

Standard:

AASHTO, BS5400, AS5100, IRC, Etc

Annual Output:

100,000 Tons

Packaging Details:

According to detailed order

Highlight:

Single Truss Compact Bailey Bridge

Single Storey Compact Bailey Bridge

Product Description

Compact 200 30.48m Single Truss Single Storey Bailey Bridge

Product Specifications

Attribute	Value
Product Name	Bailey Bridge
Steel	S355JR, S355J0, S460J0, ASTM Gr65, Gr50, etc
Type	CB100, CB200
Deck	Steel Deck
Standard	AASHTO, BS5400, AS5100, IRC, etc
Annual output	100,000 Tons

Bridge Configuration Options

Single Lane

Standard roadway: 3.15m / 4.2m

Span: 30ft-200ft

Double Lane

Standard roadway: 7.35m

Span: 30ft-180ft

Load Capacity

Custom designed to requirements

Bridge Type

CB100, CB200

Key Features

High strength and stiffness with reduced self-weight compared to concrete bridges
Uniform material quality and modulus of elasticity for predictable performance
Factory prefabricated components for quick site assembly with pins and bolts
Industrialized manufacturing process for consistent quality and easy transport
Easy maintenance and repair with long service life and recyclable materials

Technical Advantages

The Bailey Bridge system offers rapid deployment, versatility, and cost-effectiveness with excellent load-bearing capacity. Its modular design allows for quick assembly with minimal equipment, making it ideal for both temporary and permanent applications.

Construction Benefits

Simple structure with convenient transport and speedy erection
Easy disassembly and reconfiguration for different spans
Heavy loading capacity with great stability and long fatigue life
Lightweight components that can be carried by small teams
No special tools or heavy equipment required for assembly

Evercross Steel Bridge Specifications

Bridge Types	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB), Modular bridge (GWD, Delta, 450-type), Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M to 300M single span
Carriage Way	Single lane, Double lanes, Multilane, Walkway
Loading Capacity	AASHTO HL93.HS15-44 to HS25-44, BS5400 HA+20HB to HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110, Truck-60T, Trailer-80/100Ton
Certifications	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
