OEM Modular Steel Bridge System Truss Design Easy Assembly Long Service Life

Name: OEM Modular Steel Bridge System Truss Design Easy Assembly Long Service Life
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Modular Steel Bridge

Type:

GW D; D-type; Delta; 450-type; CD450; CD; 450; 470 Type

Design:

GW D Type SS, SSR, DS, C3DS, C3DSR, DD, C3DD, C3DDR, Etc. According To The Difference Of Span And Load, Select The Appropriate Row. Contact Us For Free Design.

Conventional Size Of Truss Piece:

3.048m×2.35m

Application:

Large Span, Saving The Cost Of Bridge Piers, Light Fittings, Quick Assembly, Interchangeable, Detachable, Long Life

Annual Output:

12000 Tons

Packaging Details:

According to detailed order

Highlight:

OEM Modular Steel Bridge

Easy Assembly Steel Truss Bridge

Easy Assembly Modular Steel Bridge

Product Description

OEM Modular Steel Bridge System - Truss Design with Easy Assembly & Long Service Life

Product Specifications

Product Name	Modular Steel Bridge
Type	GW D; D-type; Delta; 450-type; CD450; CD; 450; 470 type
Design	GW D type SS, SSR, DS, C3DS, C3DSR, DD, C3DD, C3DDR, etc. Custom designs available based on span and load requirements.
Conventional Size	3.048m × 2.35m
Annual Output	12,000 Tons

Product Description

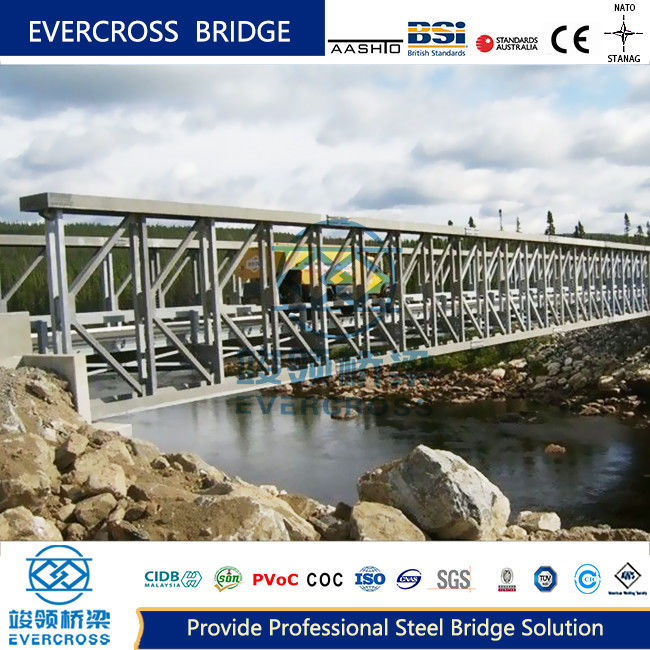

The GW D Modular Steel Bridge is an innovative assembly bridge system featuring longitudinal trusses constructed from steel beam chords and prefabricated modular steel panel webs. These components are connected end-to-end with transverse cross girders supporting either a two-lane or single-lane steel or concrete deck roadway.

Key Specifications

Configuration	Roadway Width	Span Range
Single Lane	4.2m	35m-91m
Double Lane	7.35m	35m-91m

Load capacity and deck type (steel or concrete) can be customized to project requirements.

Competitive Advantages

Heavy loading capacity

Permanent bridge solution

Exceptional stability

Simple structural design

Extended service life

Rapid assembly process

Key Features

High strength-to-weight ratio reduces beam height and self-weight compared to concrete bridges

Uniform material quality and modulus of elasticity ensure predictable performance

Factory prefabrication with on-site pin and bolt assembly minimizes construction time

Industrialized manufacturing process ensures consistent quality

Easy maintenance, repair, and replacement with fully recyclable materials

Modular design allows for easy transportation and potential reuse at different locations

Surface Protection Options

Available with either paint or hot-dip galvanized coating for corrosion resistance.

Applications

Versatile solution for various bridge types including beam bridges, arch bridges, rigid frame bridges, cable-stayed bridges, suspension bridges, and pedestrian footbridges. Suitable for temporary, emergency, and permanent fixed bridge installations.

Technical Specifications

Bridge Types	Bailey bridge, Modular bridge, Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M to 300M single span
Carriage Way	Single lane, Double lanes, Multilane, Walkway
Loading Capacity	Various standards including AASHTO HL93, BS5400, AS5100, IRC 70R Class A/B, NATO STANAG MLC80/MLC110
Steel Grade	Multiple international standards including EN10025, AS/NZS3678, ASTM A572, GB1591
Certifications	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
