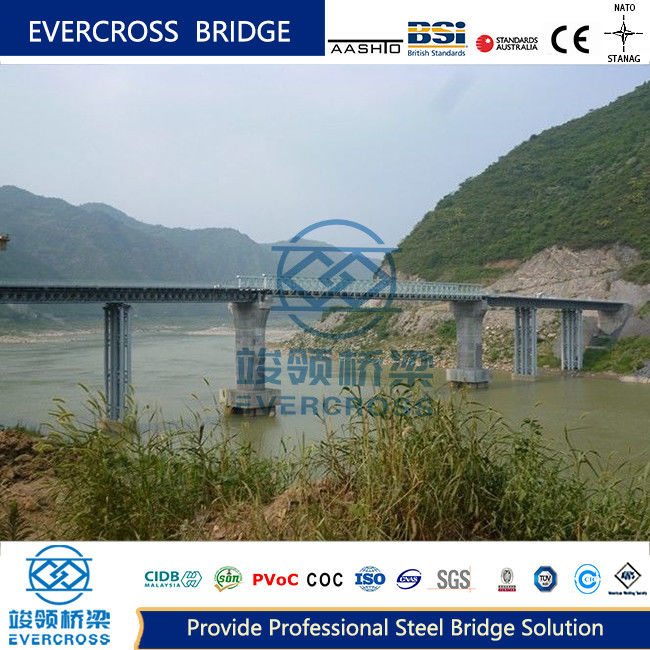

Large Span Prefabricated Steel Bridge With Simple Structure Modular Design

Name: Large Span Prefabricated Steel Bridge With Simple Structure Modular Design
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Modular Steel Bridge

Type:

GW D; D-type; Delta; 450-type; CD450; CD; 450; 470 Type

Design:

GW D Type SS, SSR, DS, C3DS, C3DSR, DD, C3DD, C3DDR, Etc. According To The Difference Of Span And Load, Select The Appropriate Row. Contact Us For Free Design.

Conventional Size Of Truss Piece:

3.048m×2.35m

Application:

Large Span, Saving The Cost Of Bridge Piers, Light Fittings, Quick Assembly, Interchangeable, Detachable, Long Life

Annual Output:

12000 Tons

Packaging Details:

According to detailed order

Highlight:

Large Span Prefabricated Steel Bridge

Simple Structure Prefabricated Steel Bridge

Large Span pre fab bridge

Product Description

Large Span Prefabricated Steel Bridge With Simple Structure Modular Design

Product Specifications

Attribute	Value
Product Name	Modular Steel Bridge
Type	GW D; D-type; Delta; 450-type; CD450; CD; 450; 470 type
Design	GW D type SS, SSR, DS, C3DS, C3DSR, DD, C3DD, C3DDR, etc. According to the difference of span and load, select the appropriate row. Contact us for free design.
Conventional size of truss piece	3.048m×2.35m
Application	Large span, saving the cost of bridge piers, light fittings, quick assembly, interchangeable, detachable, long life
Annual output	12000 Tons

Modular Steel Bridge Description

GW D Modular bridges are innovative assembly steel bridges featuring longitudinal trusses formed of steel beam chords and pre-fabricated modular steel panel webs. These are connected end-to-end with transverse cross girders supporting either a two-lane or single-lane steel deck or concrete roadway. Surface protection options include paint or hot-dip galvanizing.

Technical Specifications

Configuration	Roadway Width	Span Range
Single lane	4.2m	35m-91m
Double lane	7.35m	35m-91m
Load: Custom designed according to requirements \| Deck: Steel deck / Concrete deck

Key Advantages

Heavy loading capacity

Great stability

Long service life

Used as permanent bridge

Simple in structure

Rapid in erection

Bridge Features

High strength and stiffness with reduced weight compared to concrete bridges

Uniform material quality and modulus of elasticity for predictable performance

Factory prefabrication with quick site assembly using pins and bolts

Industrialized manufacturing process with easy transportation

Easy maintenance and replacement with recyclable materials

Applications

Beam bridge, arch bridge, rigid frame bridge, cable-stayed bridge, suspension bridge, passenger footbridge. Suitable for temporary bridges, emergency bridges, and fixed bridges.

Evercross Steel Bridges Overview

Category	Specifications
Bridge Types	Bailey bridge, Modular bridge, Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M TO 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	Various international standards including AASHTO HL93, BS5400, AS5100, IRC 70R, NATO STANAG
Steel Grade	Multiple international standards including EN10025, AS/NZS3678, ASTM A572, GB1591
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
