The Compact Bailey Bridge is a portable steel truss bridge system widely used in various applications. Its key features include adjustable spans, high load-bearing capacity, lightweight components, and easy assembly/disassembly with basic tools and manpower. Surface protection options include paint or hot-dip galvanizing.

• Enhanced safety features
• Available in single and double lane configurations
• Lightweight modular components
• Simple assembly and disassembly process
• Excellent adaptability to various sites
• Rapid deployment with minimal equipment
• Broad application range
• Cost-effective solution

• High strength-to-weight ratio with reduced beam height compared to concrete bridges
• Uniform material properties and elastic modulus for predictable performance
• Factory prefabricated components for quick site assembly
• Weather-independent construction process
• Easy transportation and industrialized manufacturing
• Long service life with simple maintenance and recyclable materials

Suitable for various bridge types including beam bridges, arch bridges, rigid frame bridges, cable-stayed bridges, suspension bridges, and pedestrian footbridges.

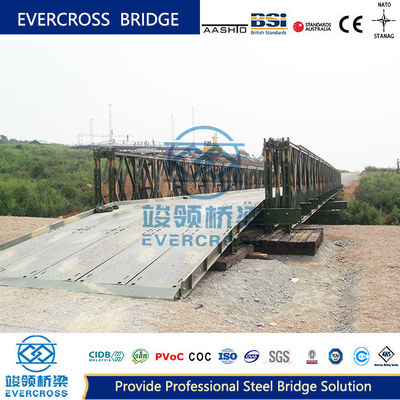

The Compact Bailey Bridge system can be erected as temporary bridges, emergency bridges, or fixed bridges. The CB200 model features:

• Increased panel height (2.134m)
• Alternating joint design to reduce deformation
• Pre-arch method to minimize deflection
• Precision bolt connections with orienting sleeves
• Composite wind-resistant braces for enhanced stability
